NEWPOS NEW9220 Battery Replacement Guide: 7.2V 2600mAh & IS928

NEWPOS NEW9220 Battery Replacement Guide: 7.2V 2600mAh & IS928

If your NEWPOS NEW9220 payment terminal no longer holds a charge, shuts down unexpectedly, or requires frequent recharging, a worn-out battery may be the cause.

The NEWPOS NEW9220 uses a 7.2V 2600mAh rechargeable lithium-ion battery, and the IS928 is commonly listed as a compatible replacement battery model for NEWPOS payment terminals.

However, choosing the right replacement involves more than matching the voltage and capacity. Battery dimensions, connector configuration, polarity, and the original part number must also be considered.

In this guide, we explain the NEW9220 battery specifications, IS928 compatibility, common battery problems, and important considerations when purchasing replacement batteries for individual or commercial use.

1. NEWPOS NEW9220 Battery Specifications

The NEWPOS NEW9220 is a portable smart POS terminal used in retail stores, restaurants, delivery services, and other mobile payment environments.

It supports various payment methods, including bank cards and contactless transactions. A rechargeable battery allows the terminal to operate without continuous connection to an external power supply.

The standard NEW9220 battery is rated at 7.2V 2600mAh, providing approximately 18.72Wh of nominal energy.

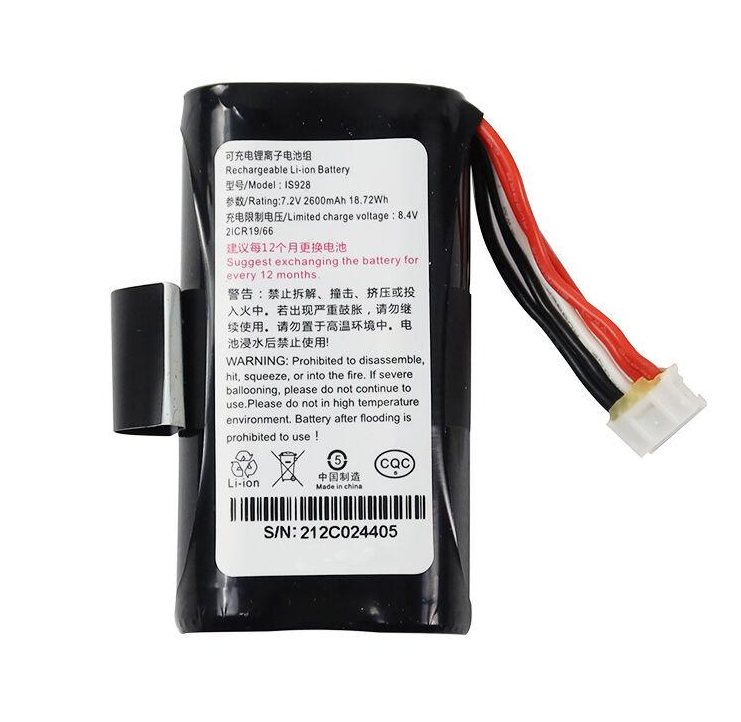

NEW9220 / IS928 Replacement Battery Specifications

Parameter	Specification
Battery Model	IS928
Compatible Terminal	NEWPOS NEW9220
Additional Listed Model	NEWPOS NEW9210
Battery Chemistry	Lithium-ion (Li-ion)
Nominal Voltage	7.2V
Rated Capacity	2600mAh
Nominal Energy	18.72Wh
Reference Dimensions	68.3 × 37.2 × 18.8mm
Battery Configuration	Rechargeable battery pack
Application	Portable POS Payment Terminal

Note: These dimensions refer to a listed IS928 replacement configuration. Other compatible battery products may have different physical dimensions and connector arrangements. Always verify the original battery before ordering.

For customers looking for replacement options, COWON also offers a NEW9210 / NEW9220 lithium-ion replacement battery.

The electrical and mechanical compatibility of any replacement should be confirmed against the original battery and terminal requirements.

2. Is the IS928 Battery Compatible with NEWPOS NEW9220?

The IS928 battery is commonly listed as a replacement option for NEWPOS NEW9220 and NEW9210 payment terminals.

However, compatibility should not be determined by the battery model name alone.

Different battery suppliers or terminal configurations may use different housings, connectors, or wiring arrangements.

Before ordering a replacement, check the following specifications.

Voltage Compatibility

The standard NEW9220 battery uses a nominal voltage of 7.2V.

Some lithium-ion battery packs may be labeled 7.4V because manufacturers use different nominal voltage conventions for individual cells.

However, a similar nominal voltage does not automatically guarantee compatibility.

The charging voltage, battery configuration, protection circuitry, and terminal requirements must also be verified.

A 3.7V single-cell battery must not be substituted for a 7.2V battery without confirming that the device specifically supports that configuration.

Capacity Compatibility

The standard IS928 configuration has a rated capacity of 2600mAh.

Battery capacity affects how long the terminal can operate between charges, although actual runtime also depends on the terminal's power consumption.

When considering a higher-capacity replacement, confirm that the battery is compatible with the device's charging system and available installation space.

Battery Size and Housing

An IS928 replacement battery configuration is listed with approximate dimensions of 68.3 × 37.2 × 18.8mm.

However, not all batteries marketed for the NEW9220 necessarily share identical dimensions.

Before purchasing, compare the length, width, thickness, connector location, and cable routing with the original battery.

A battery that does not fit correctly may prevent the battery compartment from closing or place unnecessary pressure on the connector.

Connector and Polarity

Connector compatibility is one of the most important considerations when selecting a replacement POS terminal battery.

Check the connector housing, contact positions, number of wires, cable length, and polarity.

Two batteries with identical voltage and capacity may still use different electrical pin assignments.

Never force a connector into place or assume that visually similar connectors have identical wiring.

For wholesale buyers, photographs of the original battery label and connector are useful for confirming compatibility before production or shipment.

3. Common Signs That Your NEW9220 Battery Needs Replacement

Lithium-ion batteries gradually lose usable capacity through aging, repeated charging cycles, and exposure to unfavorable operating conditions.

Several symptoms may indicate that a NEWPOS NEW9220 battery requires inspection or replacement.

Shorter Battery Runtime

A noticeable reduction in operating time is one of the most common signs of battery aging.

If a terminal previously operated through a normal working shift but now requires frequent charging, battery capacity degradation may be responsible.

However, changes in screen brightness, wireless connectivity, printing frequency, and application activity can also affect battery life.

Unexpected Shutdowns

A deteriorated battery may experience a significant voltage drop when the terminal draws additional power.

For example, the terminal may shut down during a transaction or receipt printing even though the displayed battery percentage is not zero.

If this occurs repeatedly, the battery and device power system should be inspected.

Charging Problems

Common charging-related symptoms include:

• Battery percentage remaining unchanged during charging

• Significantly longer charging times

• Terminal operating only while connected to a charger

• Battery draining unusually quickly after charging

These symptoms may also result from problems with the charging cable, adapter, contacts, or internal charging circuit.

Battery Swelling or Physical Damage

A swollen, leaking, unusually hot, or visibly damaged battery presents a safety risk.

Stop using or charging the battery and arrange appropriate inspection and disposal through a qualified service provider.

Do not puncture, compress, or attempt to repair a damaged lithium-ion battery.

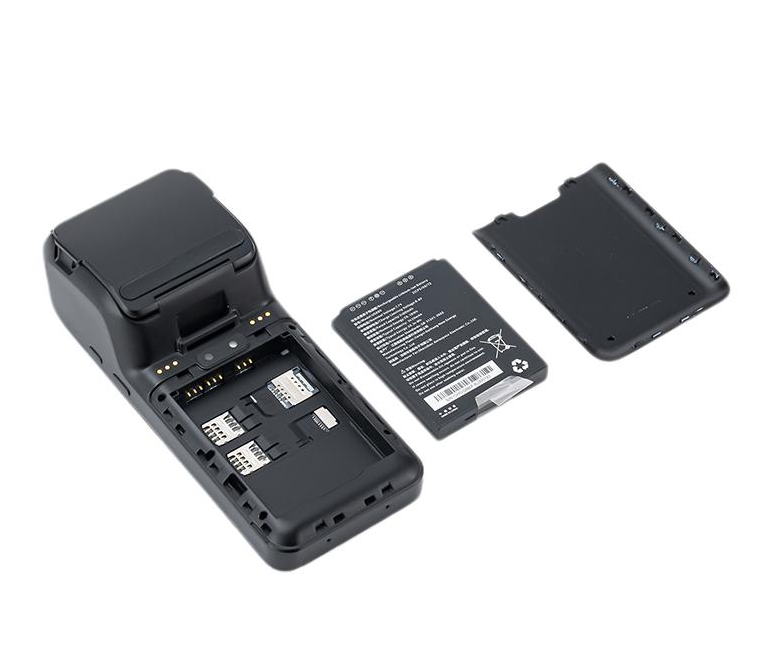

4. How to Replace a NEWPOS NEW9220 Battery

Replacing a portable POS terminal battery can be relatively straightforward when an approved, compatible replacement is available.

However, always follow the manufacturer's instructions for the specific device version.

Step 1: Power Off the Device

Complete any pending transactions and shut down the terminal.

Disconnect the charging adapter before accessing the battery compartment.

Step 2: Open the Battery Cover

Locate the battery compartment on the rear of the terminal and open the cover according to the manufacturer's instructions.

Avoid dismantling the main terminal housing or disturbing internal security components.

Step 3: Disconnect the Original Battery

Carefully disconnect the original battery, holding the connector housing rather than pulling directly on the wires.

Observe the battery orientation and connector position.

Step 4: Verify the Replacement

Compare the new battery with the original unit.

Confirm the voltage, part number, dimensions, connector configuration, and polarity before installation.

If any specification is uncertain, consult the battery supplier or an authorized service provider.

Step 5: Install and Test

Connect the approved replacement battery and position it correctly inside the compartment.

Close the battery cover without trapping or compressing the wires.

Power on the terminal and verify normal operation and charging behavior with the approved charger.

If the device displays a battery error, shuts down unexpectedly, or develops unusual heat, discontinue use and investigate the issue.

5. What to Consider When Buying NEW9220 Replacement Batteries in Bulk

For POS terminal distributors, repair companies, and payment service providers, selecting reliable replacement batteries is important for maintaining equipment availability and controlling maintenance costs.

The following factors should be evaluated before placing a bulk order.

Consistent Battery Performance

Battery quality can affect operating time, voltage stability, and long-term reliability.

Buyers should request appropriate information about rated capacity, electrical performance, and quality control.

For large orders, sample testing helps determine whether the proposed battery meets the intended application requirements.

Protection Circuit Design

Lithium-ion battery packs require suitable protection against electrical conditions such as overcharging, over-discharging, overcurrent, and short circuits.

The protection arrangement must be appropriate for the battery pack and terminal design.

Mechanical and Connector Consistency

Even small differences in connector dimensions or wiring may create installation problems.

Bulk buyers should confirm connector specifications and battery dimensions before approving production.

Shipping and Compliance Documentation

Lithium-ion batteries are subject to transportation requirements that depend on the battery configuration, shipping method, and destination.

Buyers may need supporting information such as UN38.3 test documentation and a Safety Data Sheet (SDS).

Always verify which documents are available for the specific replacement battery supplied.

Sample Validation

Testing samples before a large order helps reduce compatibility risks.

A sample evaluation should include physical fit, connector matching, charging behavior, terminal operation, and battery performance under normal working conditions.

6. COWON NEWPOS NEW9220 Replacement Battery Solutions

COWON specializes in rechargeable battery solutions for portable electronics and industrial devices, including payment terminals, barcode scanners, medical equipment, and other electronic applications.

For businesses sourcing batteries for NEWPOS payment terminals, COWON offers replacement battery options and compatibility-matching support.

Our product range includes batteries listed for NEWPOS NEW9210 and NEW9220 terminals.

Explore Our NEW9220 Replacement Battery

View COWON NEWPOS NEW9210 / NEW9220 Replacement Battery – Product Specifications & Inquiry

Customers can review the product listing and contact COWON to confirm the correct configuration for their equipment.

Battery Sourcing Services

Depending on product requirements and order quantities, COWON can assist with:

• Replacement battery model matching

• Battery specification and connector confirmation

• OEM and private-label requirements

• Sample evaluation

• Wholesale and bulk-order quotations

• Battery sourcing for additional POS terminal models

For the most accurate product recommendation, please provide the original battery model, required quantity, destination country, and clear photographs of the battery label and connector.

7. Frequently Asked Questions

What battery does the NEWPOS NEW9220 use?

The standard NEWPOS NEW9220 uses a 7.2V 2600mAh rechargeable lithium-ion battery with approximately 18.72Wh of nominal energy.

The IS928 is a commonly listed replacement battery model. The exact configuration should be confirmed before purchase.

Is the IS928 battery compatible with NEWPOS NEW9210?

IS928 replacement batteries are also listed for NEWPOS NEW9210 terminals.

However, compatibility depends on the original battery configuration, including its dimensions, electrical specifications, and connector arrangement.

Can I use a 7.4V battery instead of a 7.2V battery?

Some lithium-ion battery packs use 7.2V and 7.4V nominal voltage labels because of different cell voltage conventions.

However, this alone does not establish interchangeability.

The charging characteristics, protection circuitry, connector configuration, and terminal requirements must also be compatible.

Can I replace a 2600mAh battery with a higher-capacity battery?

A higher-capacity battery may provide longer operating time if it is compatible with the terminal.

Before upgrading, verify the voltage, charging characteristics, physical dimensions, connector configuration, and terminal manufacturer's requirements.

How long does a NEWPOS NEW9220 battery last?

Battery runtime varies with capacity, battery condition, screen brightness, wireless communication, printing frequency, and daily operating conditions.

As rechargeable lithium-ion batteries age, their available capacity gradually decreases.

A significant reduction in operating time may indicate that battery replacement is necessary.

What information should I provide when requesting a replacement battery?

Providing the following information can make compatibility confirmation easier:

• POS terminal brand and model

• Original battery model or part number

• Nominal voltage and rated capacity

• Photographs of the battery and connector

• Required purchase quantity

Does COWON supply replacement batteries for other POS terminals?

Yes. COWON offers rechargeable battery solutions for various payment terminal applications.

For models not listed on the website, customers can submit the original battery specifications for compatibility evaluation and product sourcing.

Conclusion

Choosing the correct NEWPOS NEW9220 replacement battery requires careful verification of voltage, capacity, dimensions, and connector compatibility.

The 7.2V 2600mAh IS928 is a commonly listed replacement configuration, but matching the original battery specifications remains essential for reliable operation.

For POS terminal distributors, equipment maintenance providers, and wholesale buyers, working with an experienced battery supplier can help simplify product matching, sample validation, and bulk procurement.

Looking for NEWPOS NEW9220 Replacement Batteries?

COWON provides rechargeable battery solutions for payment terminals and other portable electronic devices.

Explore our NEWPOS NEW9210 / NEW9220 replacement battery product page, or contact our team for product compatibility assistance, samples, and wholesale quotations.
