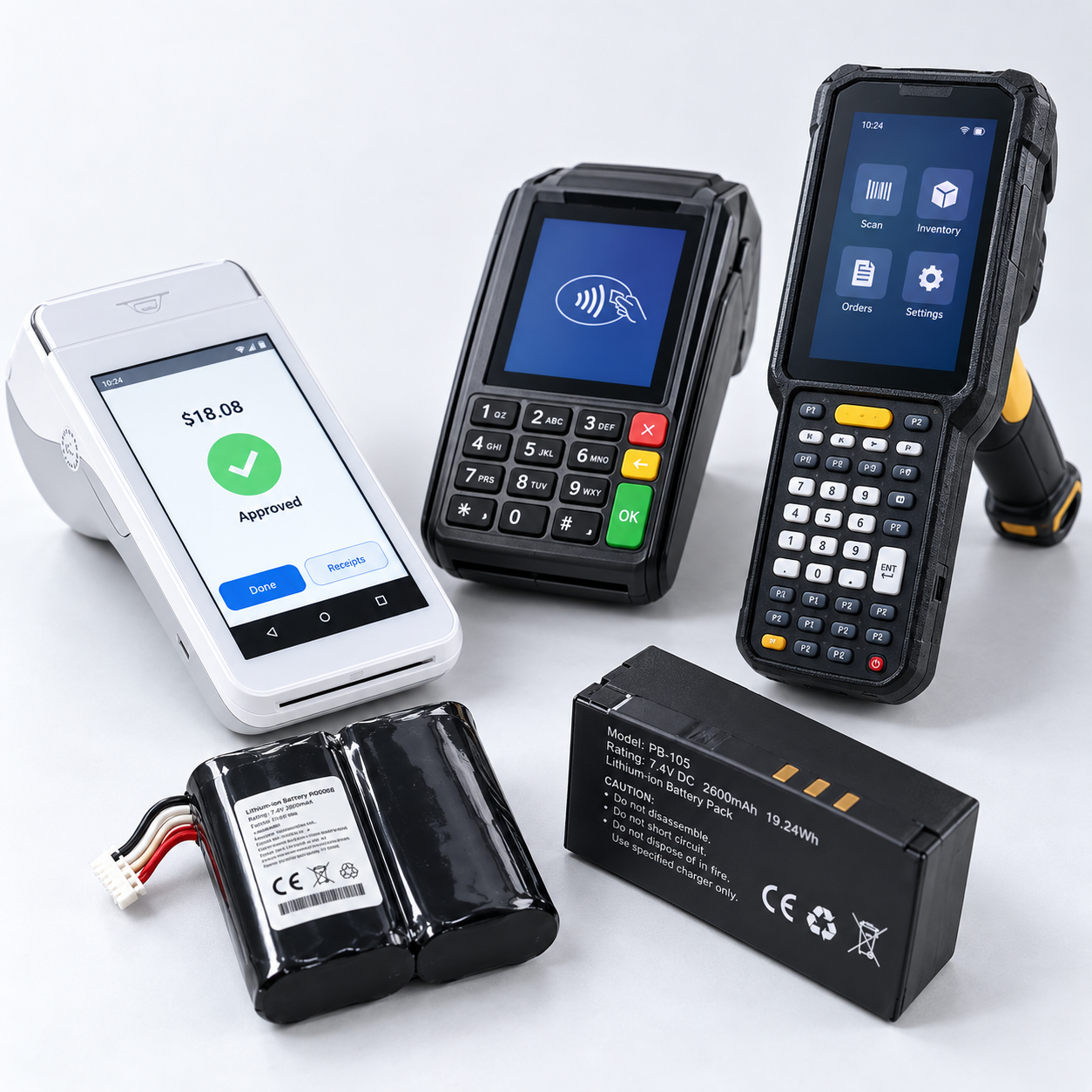

POS terminals and handheld data collection devices are expected to work for an entire shift. In retail stores, restaurants, warehouses, delivery operations and field service, a weak battery quickly becomes more than a minor inconvenience.

A terminal that used to run all day may suddenly need charging after only a few hours. Some devices shut down during payment processing, while warehouse scanners may have to be swapped several times during a shift.

In many cases, the terminal itself is still perfectly usable. Replacing the battery is a much more practical option than replacing the complete device.

However, choosing a replacement battery requires more than simply finding a pack with a similar shape or capacity.

This guide covers several commonly used POS and handheld terminal batteries, including PAX A920 Pro, PAX D210 and D230, Castles Vega3000, Zebra MC33/MC3300 and other popular equipment.

When Should a POS Terminal Battery Be Replaced?

Lithium-ion batteries gradually lose usable capacity as they age. Charging habits, operating temperature, number of cycles and storage conditions can all affect battery life.

Common signs that a POS or handheld terminal battery is approaching the end of its useful life include:

• Operating time is noticeably shorter than before.

• The battery percentage drops unusually quickly.

• The device shuts down even though some battery capacity is still displayed.

• Charging takes much longer than normal.

• The battery becomes unusually warm during charging or operation.

• The battery casing starts to swell or deform.

• Several batteries in the same fleet begin showing similar runtime problems.

A swollen or physically damaged lithium battery should be removed from service rather than continuing to be used.

For businesses operating dozens or hundreds of terminals, it is usually better to monitor battery condition across the entire fleet instead of waiting until individual devices begin failing during operation.

What to Check Before Ordering a Replacement Battery

Two batteries may look almost identical but still be electrically or mechanically incompatible.

Before ordering, check the following information whenever possible.

1. Terminal Model

Start with the exact equipment model.

For example:

• PAX A920 and A920 Pro

• PAX D210

• PAX D230

• Castles Vega3000 V3M2

• Zebra MC33 / MC3300 / MC3200

Small differences in model names can indicate completely different battery designs.

This is especially important with PAX D210 and D230. Although the product names are similar, they do not use the same battery system. The D210 replacement pack discussed below is a 7.4V battery, while PAX specifies a 3.7V 3400mAh rechargeable battery for the portable D230.

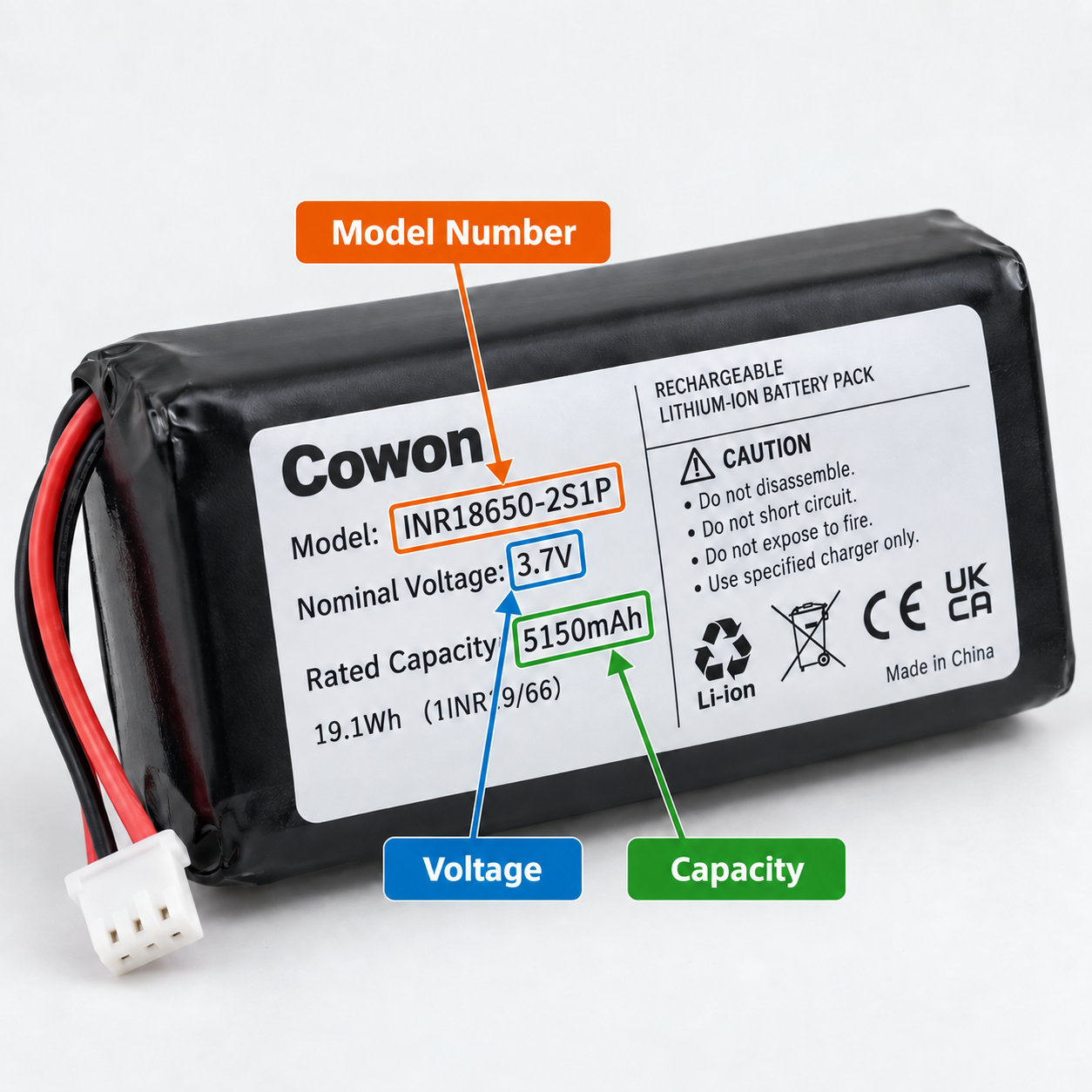

2. Original Battery Part Number

The battery label is often more useful than the terminal model itself.

Look for information such as:

• Battery part number

• Battery model

• Voltage

• Capacity

• Wh rating

• Connector configuration

• Manufacturer code

For older equipment, several revisions of the same terminal may exist. Matching the original battery part number is one of the best ways to avoid compatibility problems.

3. Voltage

Voltage must be checked carefully.

A 3.7V lithium-ion battery should not automatically be replaced with a 7.4V battery simply because the pack fits inside the device.

Common POS terminal batteries include both single-cell and multi-cell configurations.

4. Connector and Contact Position

Check how the battery connects to the terminal.

Depending on the model, the battery may use:

• Spring contacts

• Blade contacts

• Wire leads

• Multi-pin connectors

• Integrated battery housings

The connector type, contact position and polarity must match the original design.

5. Physical Dimensions

Measure the original battery if the part number cannot be identified.

Length, width and thickness are all important. A difference of only a few millimeters may prevent the battery cover from closing correctly.

6. Capacity

A higher-capacity battery can provide longer operating time, but higher mAh does not automatically mean better compatibility.

The replacement pack still needs to match:

• Voltage

• Charging characteristics

• Physical size

• Connector

• Battery management/protection design

• Terminal battery compartment

Capacity should therefore be considered after basic electrical and mechanical compatibility have been confirmed.

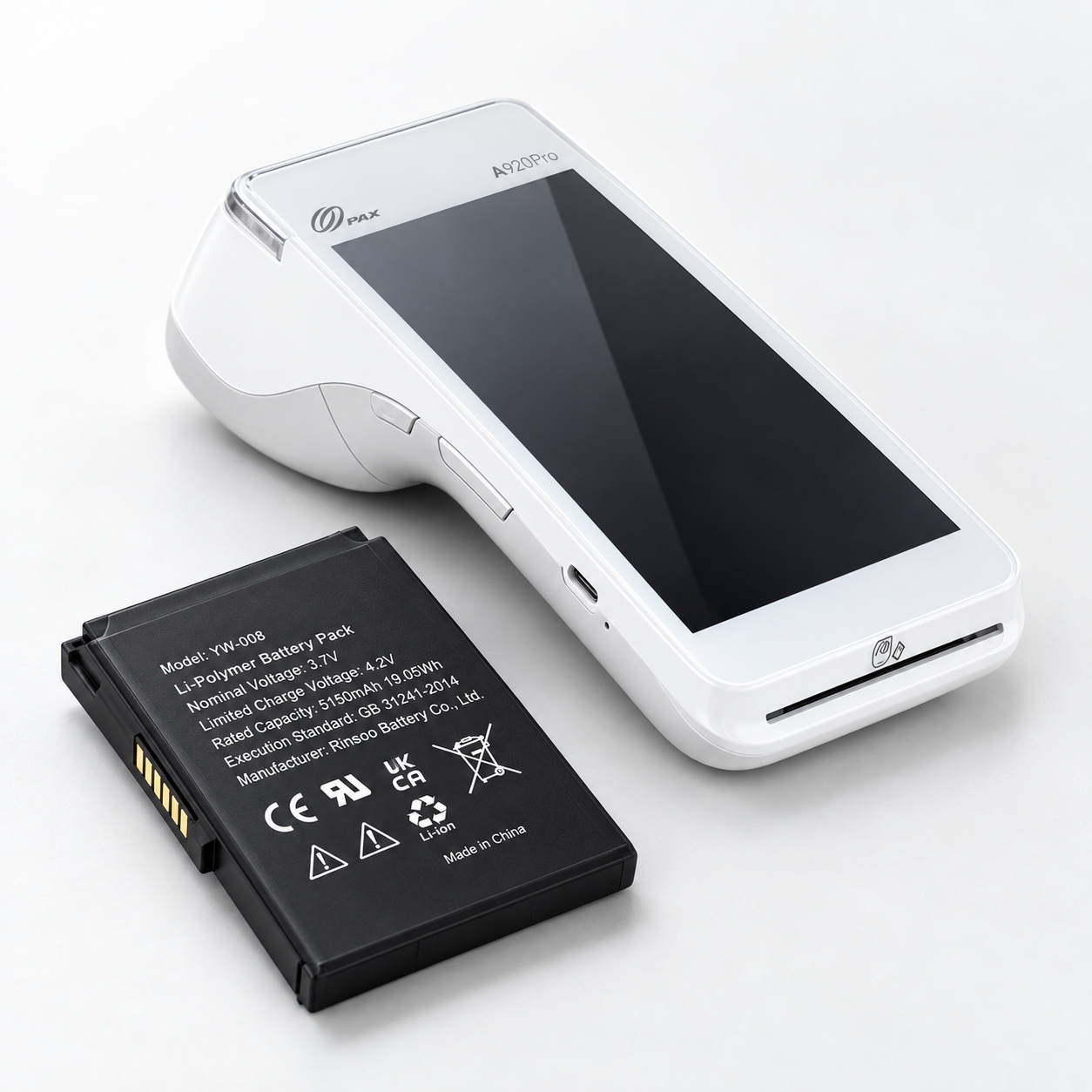

PAX A920 Pro Replacement Battery

The PAX A920 series is widely used as a portable Android payment terminal. Like most mobile POS equipment, its battery is one of the components most affected by daily charging and continuous operation.

For the PAX A920 Pro, one available replacement option is the YW-008 3.7V 5150mAh lithium-ion battery.

Key specifications include:

• Battery model: YW-008

• Nominal voltage: 3.7V

• Capacity: 5150mAh

• Energy: approximately 19.24Wh

• Compatible terminal: PAX A920 Pro

• Battery type: rechargeable lithium-ion

You can view the product here:

3.7V 5150mAh YW-008 Replacement Battery for PAX A920 Pro

The Cowon listing specifies dimensions of approximately 70 × 60 × 10mm for this replacement pack.

When replacing an A920-series battery, check whether the terminal is specifically an A920 Pro, because batteries used by different A920-family versions may not necessarily be identical.

For fleet maintenance, photographing both the terminal model label and the original battery label before ordering can save a considerable amount of time.

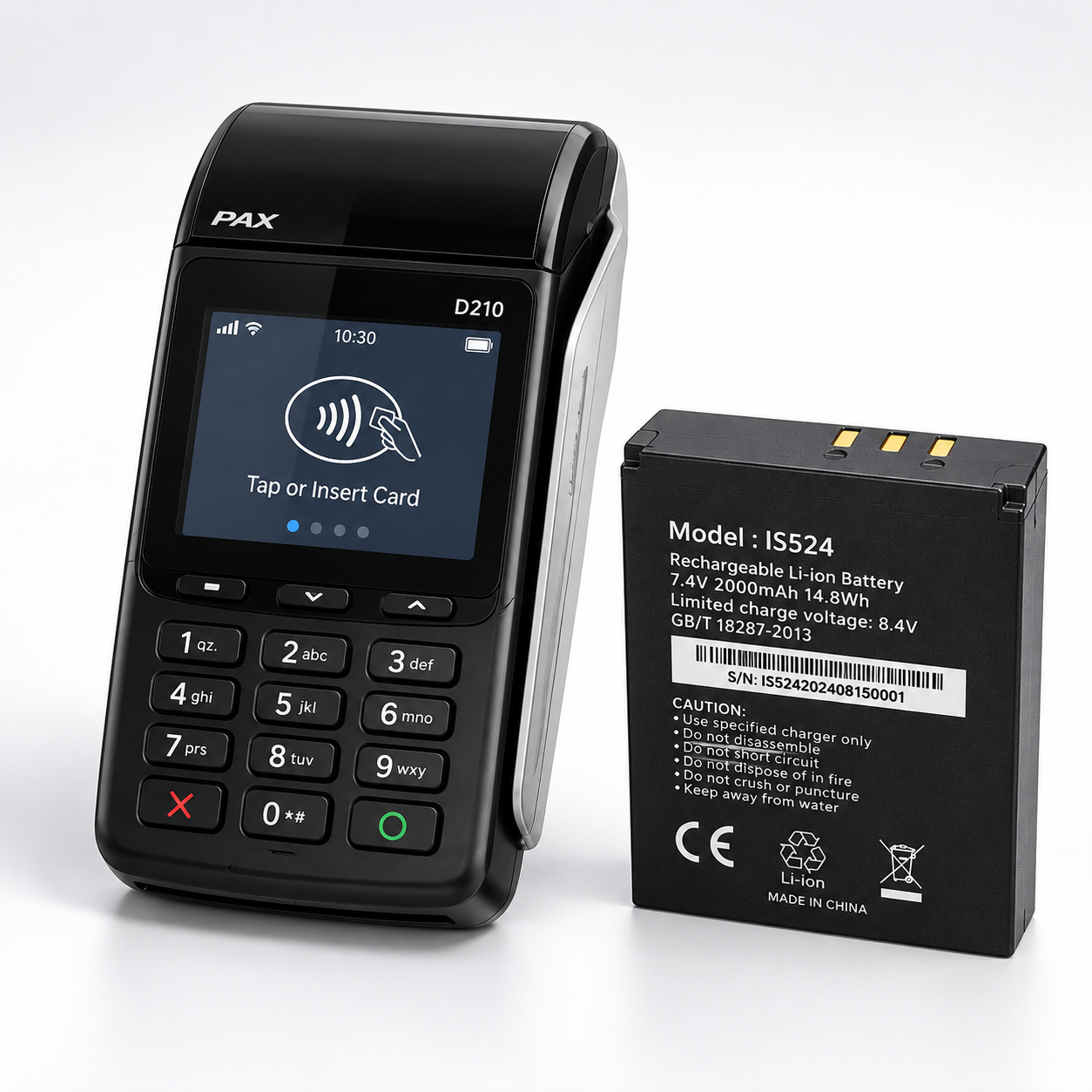

PAX D210 Replacement Battery

The PAX D210 is another commonly deployed portable payment terminal.

A replacement battery for this model is available using battery reference IS524, with a nominal voltage of 7.4V.

The replacement configuration includes:

• Compatible device: PAX D210

• Battery reference: IS524

• Nominal voltage: 7.4V

• Capacity: approximately 1950mAh–2000mAh

• Battery chemistry: lithium-ion

Product details are available here:

7.4V 1950mAh/2000mAh Replacement Battery for PAX D210 – IS524

The important point here is the 7.4V configuration.

Do not select a battery simply by searching for “PAX portable POS battery.” Confirm D210 on the terminal and compare the original battery code before ordering.

What About the PAX D230?

The D230 deserves a separate section because it is easy to confuse with the D210.

Despite the similar model number, the D230 uses a different battery platform.

PAX lists the portable D230 with a:

• 3.7V rechargeable battery

• 3400mAh capacity

This means a 7.4V D210 IS524 battery should not be treated as a D230 replacement.

Cowon also supplies replacement batteries for the D230, including a 3.7V 3400mAh configuration. When requesting a quotation, providing a clear photograph of the original D230 battery label is recommended.

This is a good example of why searching only by brand is not enough. PAX terminals from the same product family may use completely different battery voltages, housings and contacts.

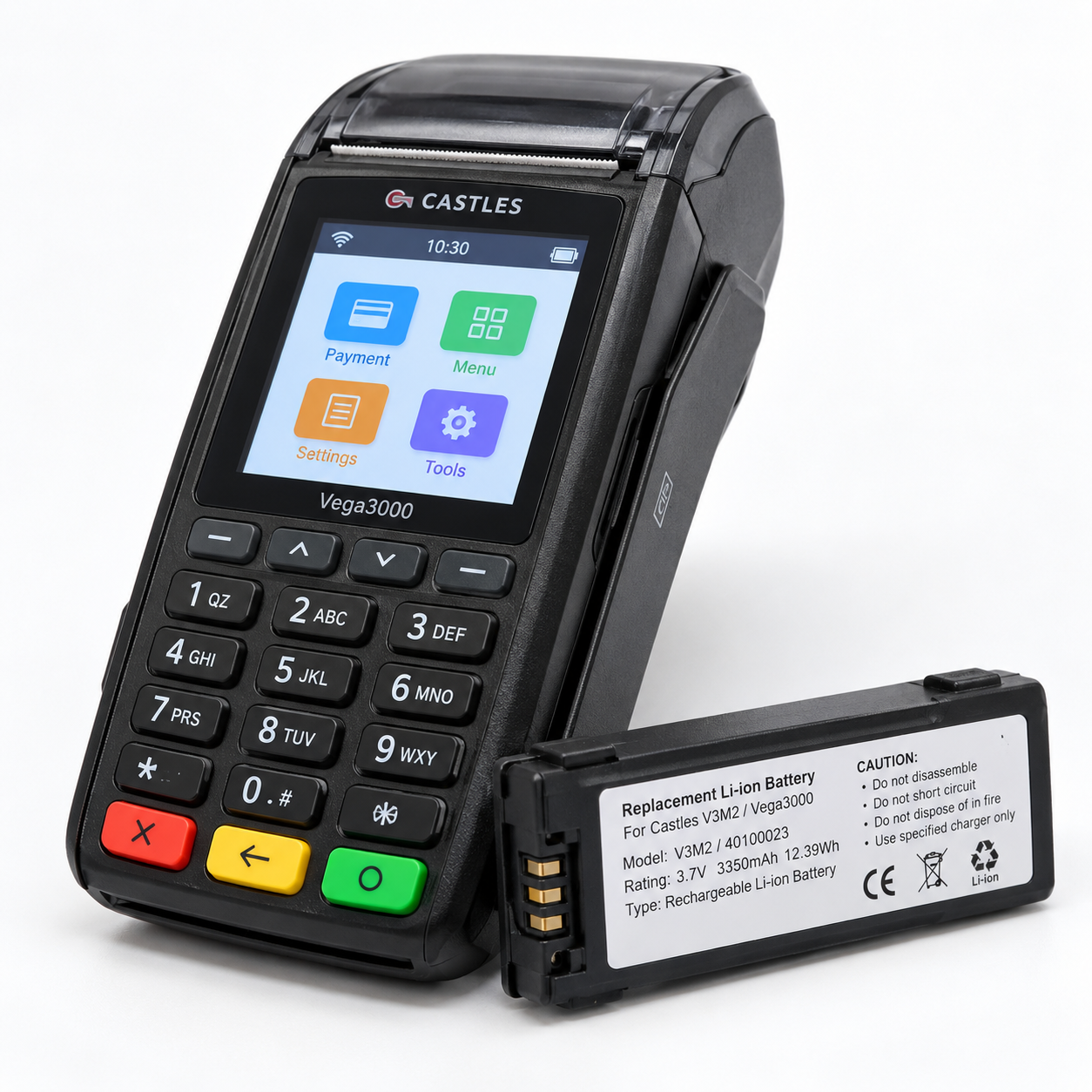

Castles Vega3000 / V3M2 Replacement Battery

The Castles Vega3000 is another payment terminal commonly found in retail and mobile payment environments.

For Vega3000 / V3M2 applications, Cowon offers a 3.7V 3350mAh lithium-ion replacement battery.

Typical specifications include:

• Compatible model: Castles Vega3000 / V3M2

• Battery part reference: V3M2 / 40100023

• Nominal voltage: 3.7V

• Capacity: 3350mAh

• Energy: approximately 12.39Wh

• Battery chemistry: lithium-ion

More information is available here:

3.7V 3350mAh Replacement Battery for Castles Vega3000 V3M2

The replacement pack has dimensions of approximately 67.05 × 21.10 × 18.80mm.

One point worth noting is that replacement batteries sometimes have a slightly different rated capacity from the battery originally supplied with the terminal.

That alone does not mean the battery is incompatible.

For example, Castles documentation for some Vega3000 V3M2 configurations lists a 3100mAh Li-ion battery, while compatible replacement packs may be rated at 3350mAh. The key checks remain voltage, dimensions, contacts, charging compatibility and the exact device revision.

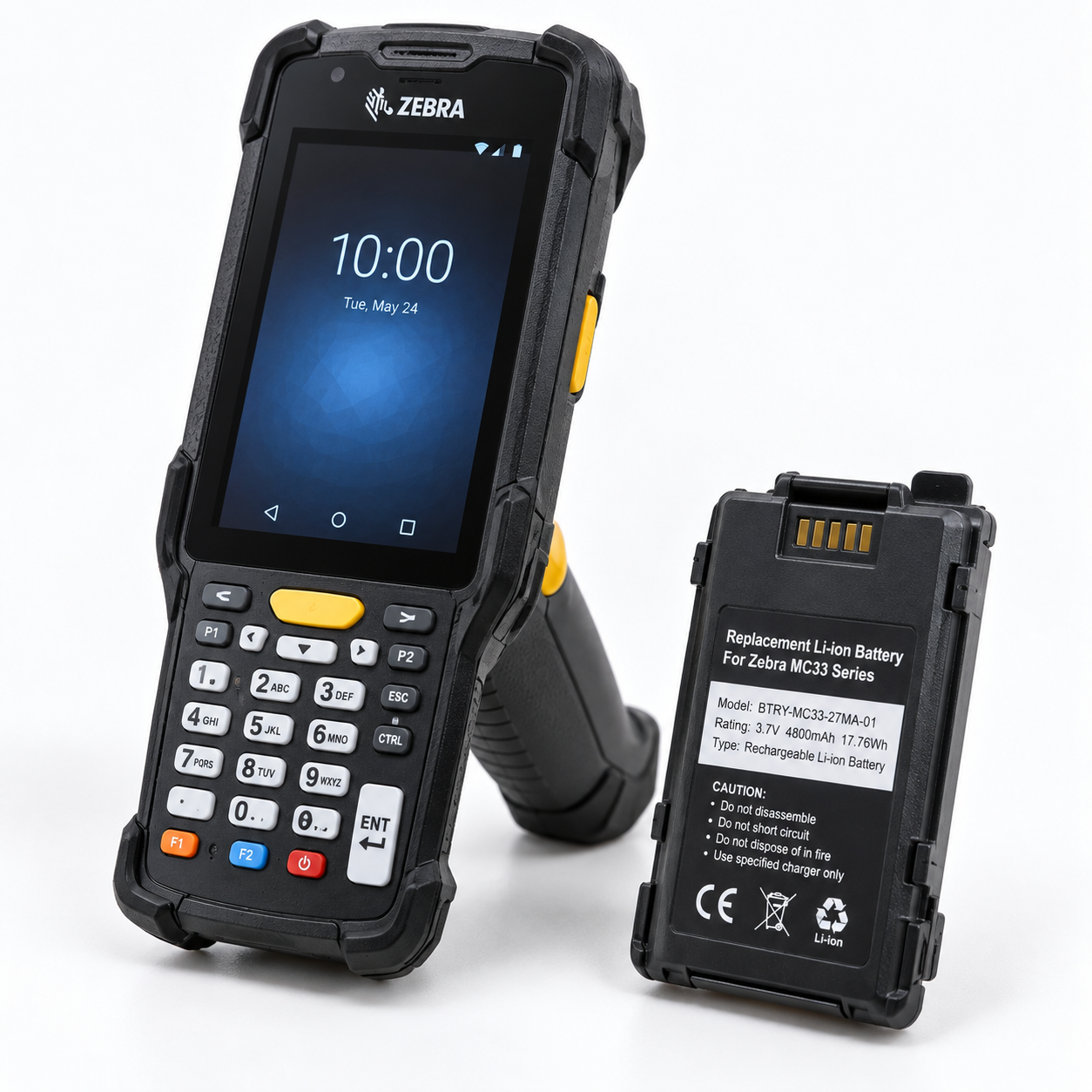

Zebra MC33 / MC3300 Handheld Scanner Batteries

Battery replacement is equally important outside payment terminals.

Warehouses, logistics centers, retail inventory teams and manufacturing facilities often operate handheld barcode scanners for long shifts. When the battery deteriorates, productivity is affected immediately.

The Zebra MC33 / MC3300 family is a good example.

Zebra documentation shows that MC3300 configurations can use different battery capacities, including standard and high-capacity battery options.

Because of these different configurations, checking the battery part number is particularly important when sourcing an MC33-series replacement.

Cowon supplies compatible batteries for models including MC33 and MC3300:

Replacement Battery for Zebra MC3300 / MC3200 / MC33 Series

Depending on the scanner version, relevant battery references may include codes such as BTRY-MC33-27MA-01 and other Zebra battery part numbers.

When purchasing batteries for warehouse equipment, do not rely only on the text “MC3300 compatible.”

Send the supplier:

1. Scanner model

2. Original battery part number

3. Battery label photo

4. Battery dimensions if available

5. Required quantity

This becomes especially important when replacing hundreds of batteries across a warehouse fleet.

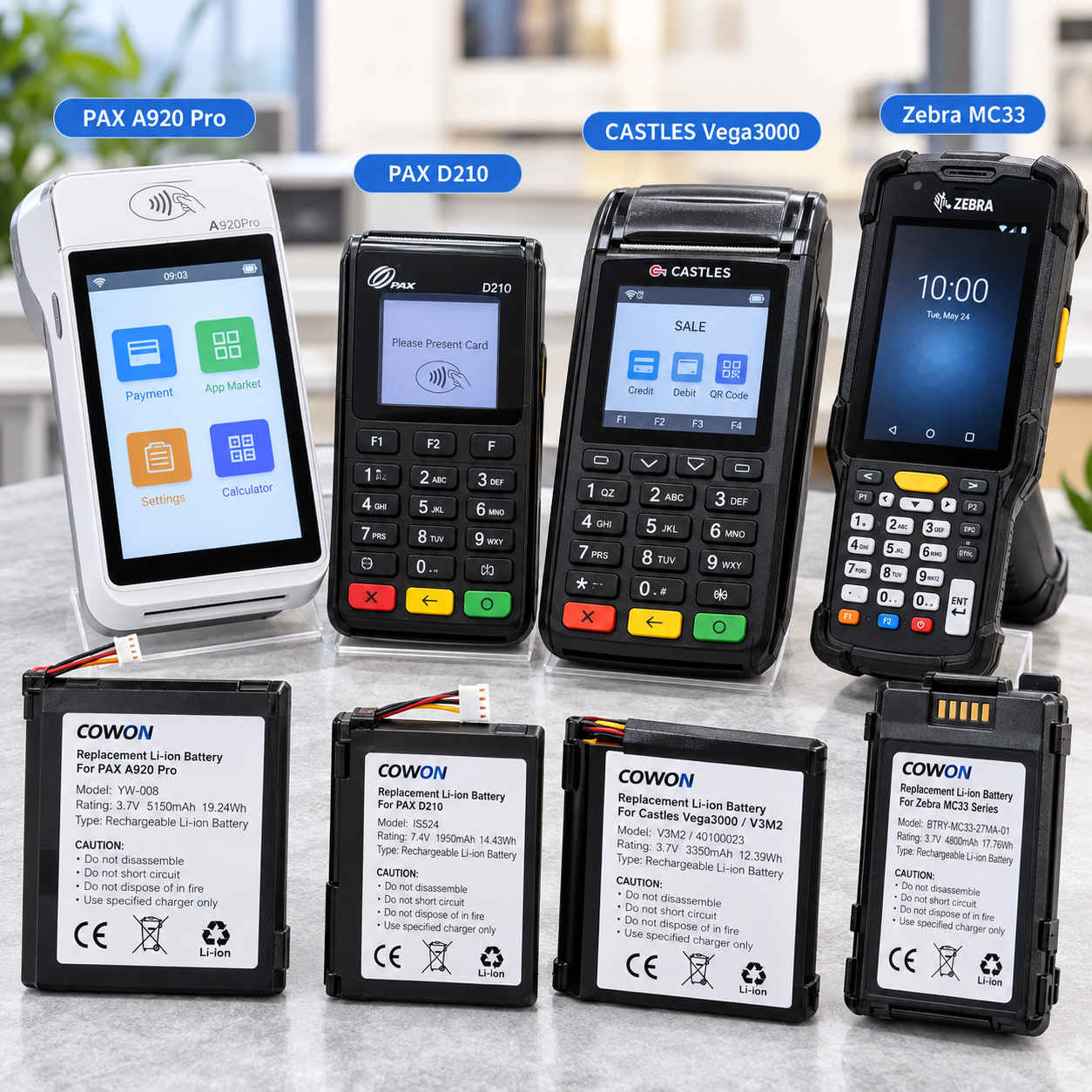

POS Battery Compatibility at a Glance

Device	Typical Replacement Battery	Voltage	Capacity	Important Check
PAX A920 Pro	YW-008	3.7V	5150mAh	Confirm A920 Pro version
PAX D210	IS524	7.4V	1950–2000mAh	Do not confuse with D230
PAX D230	D230 battery pack	3.7V	3400mAh	Different from D210
Castles Vega3000 / V3M2	V3M2 / 40100023	3.7V	3350mAh replacement	Check terminal revision
Zebra MC33 / MC3300	Varies by configuration	Varies by pack	Standard/high-capacity options	Match original part number

The table is intended as a quick reference. For final purchasing decisions, the original battery label should still be checked.

Why the Battery Part Number Matters More Than the Device Name

When sourcing replacement batteries professionally, we normally recommend using the following order of identification:

Original battery part number → device model → voltage → connector → dimensions → capacity

Why?

Because manufacturers sometimes produce several hardware revisions under one commercial device name.

For example, a terminal may be sold for many years while its internal battery, charging contacts or battery enclosure changes during the product lifecycle.

The opposite situation can also occur: one battery design may be used across several terminal models.

That is why a photo of the battery label is often enough for an experienced replacement battery supplier to identify the correct pack quickly.

Can You Use a Higher-Capacity Replacement Battery?

Sometimes.

If the replacement battery has the same nominal voltage, correct mechanical design and compatible electronics, a moderately higher capacity can provide additional operating time.

But capacity should never be considered separately from the rest of the battery design.

For example, replacing a 3000mAh pack with a compatible 3350mAh version may be perfectly reasonable.

Trying to install a completely different 5000mAh battery simply because “more capacity is better” is not.

A suitable replacement needs to work correctly with the terminal's charging system and battery compartment.

When in doubt, match the original part number first.

Replacement Batteries for Large POS and Scanner Fleets

A company replacing five batteries has very different requirements from a company maintaining 2,000 payment terminals or handheld scanners.

For larger projects, several additional factors should be considered.

Consistent Battery Production

Buying replacement batteries from multiple uncontrolled sources can create differences in:

• Runtime

• Cell quality

• Internal resistance

• Protection circuit design

• Connector quality

• Housing fit

• Production date

For fleet maintenance, consistent batches are usually more important than finding the cheapest individual battery.

Packaging

Individual retail packaging may be suitable for service centers and resale.

For large deployment projects, industrial bulk packaging can reduce packing volume and purchasing cost.

Custom labels, packaging and branding may also be required by distributors or equipment service companies.

Transportation Documents

Lithium batteries are regulated during international transportation.

Depending on the shipment and destination, documentation may include items such as:

• UN38.3 test documentation

• MSDS

• Battery specification sheet

• Packing information

• Other transport documents required by the carrier

These requirements should be confirmed before placing a large international order rather than after the goods are ready to ship.

Sample Testing

For a new replacement battery project, testing a small number of batteries before bulk purchasing is usually worthwhile.

The customer can verify:

• Installation

• Charging

• Runtime

• Terminal battery indication

• Contact stability

• Housing fit

• Real operating performance

Once the sample is confirmed, the same specification can be used for the production order.

We Need a Battery That Is Not Listed. What Information Should We Send?

There are thousands of POS terminals, barcode scanners, mobile computers and other handheld devices in service worldwide.

It is therefore normal for a replacement battery model not to appear in an online catalog.

If you cannot find your battery, send the following information:

• Equipment brand

• Exact equipment model

• Original battery model or part number

• Clear photos of the front and back of the battery

• Connector or contact photo

• Voltage and capacity shown on the label

• Battery dimensions

• Required quantity

In many cases, the original part number or a clear battery label photo is enough to begin identifying a suitable replacement.

Other POS and Handheld Equipment Batteries

In addition to PAX, Castles and Zebra equipment, replacement batteries are commonly required for terminals and handheld devices from brands such as:

• SUNMI

• Ingenico

• Verifone

• Newland

• Symbol

• Honeywell

• Datalogic

• Other mobile payment and data collection equipment

Some models are standard replacement products, while others require confirmation of the original battery code before production.

For older or discontinued terminals, replacement battery sourcing can also help extend the useful service life of existing equipment when complete device replacement would be unnecessarily expensive.

Frequently Asked Questions

Are PAX D210 and D230 batteries interchangeable?

No. They should not be treated as interchangeable batteries simply because the device names are similar.

The D210 replacement battery discussed in this guide uses a 7.4V configuration, while PAX specifies a 3.7V 3400mAh battery for the portable D230. Always confirm the exact terminal model before ordering.

Can I install a battery with a higher mAh rating?

Potentially, but only when the voltage, dimensions, connector, polarity and charging characteristics are compatible.

Higher capacity alone does not guarantee compatibility.

How can I identify the correct replacement battery?

The best information is usually the original battery part number. If that is unavailable, provide the terminal model, battery label photos, voltage, capacity and dimensions.

Should I replace a swollen POS battery?

A swollen lithium-ion battery should be removed from service. Do not continue charging or operating a visibly damaged battery.

Can replacement POS batteries be shipped internationally?

Yes, lithium batteries can be transported internationally, but shipping is regulated. The appropriate packing method, transport channel and documentation depend on battery type, quantity and destination.

Can a replacement battery work as well as the original?

A properly designed replacement battery can provide reliable performance when the cells, protection circuit, housing, contacts and electrical specification are correctly matched to the device.

For commercial projects, sample testing before a large order is recommended.

Final Thoughts

Replacing the battery is one of the simplest ways to extend the service life of a POS terminal or handheld scanner.

But the correct replacement is not always the battery that appears first when searching by device name.

Start with the original battery label. Confirm the part number and voltage, then check dimensions, contacts and capacity.

This is particularly important for product families such as PAX D210/D230 and Zebra MC33/MC3300, where similar device names may cover different battery configurations.

For commonly used models, Cowon provides replacement solutions including:

• PAX A920 Pro YW-008 3.7V 5150mAh Battery

• PAX D210 IS524 7.4V 1950mAh/2000mAh Battery

• Castles Vega3000 V3M2 3.7V 3350mAh Battery

• Zebra MC33 / MC3300 / MC3200 Replacement Battery

If your battery is not listed, send us the device model, original battery part number and battery photos. We can check the available replacement options and help confirm compatibility before ordering.
