The health state of a battery (State of Health, SOH) is a key indicator for assessing battery performance and lifespan. The following is a detailed introduction to SOH from the aspects of definition, influencing factors, evaluation methods, and importance:

Definition

The health state of a battery refers to the quantitative description of the battery's performance and aging degree under certain usage conditions, relative to its brand-new state. It comprehensively reflects changes in the battery's capacity, internal resistance, charge/discharge efficiency, cycle life, and other performance aspects. It is usually expressed as a percentage, with 100% indicating a brand-new battery and a lower value indicating a worse health condition.

Influencing Factors

Temperature: Both excessively high and low temperatures can accelerate battery aging. High temperatures increase the speed of chemical reactions inside the battery, leading to more rapid electrode material degradation and higher self-discharge rates. Low temperatures, on the other hand, slow down the diffusion of lithium ions, increasing the battery's internal resistance and reducing charge/discharge efficiency.

Depth of Charge/Discharge: Frequent deep charge/discharge cycles can be very damaging to batteries. Deep discharges excessively deplete the electrode materials, shortening battery life. Overcharging can cause the battery to overheat and may even lead to safety issues. For example, using a mobile phone battery until it is almost depleted before charging, or frequently charging the battery to 100% and keeping it there for long periods, can both have adverse effects on the battery's health state.

Cycle Count: During the charge/discharge process, the chemical substances inside the battery continuously react. As the number of cycles increases, the electrode materials gradually wear out and age, and the battery's capacity gradually decreases. Different types of batteries have different cycle lifespans. For example, a typical lithium-ion battery may see its SOH drop to around 80% after several hundred to a thousand cycles.

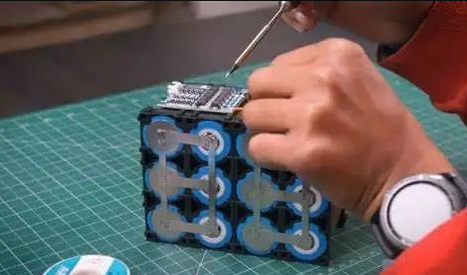

Battery Management System (BMS): The BMS is an essential device for protecting battery safety and extending battery life. It can monitor the battery's voltage, current, temperature, and other parameters in real time and control the charge/discharge process to prevent overcharging, overdischarging, and overheating. An excellent BMS can effectively optimize battery usage, slow down the aging rate, and improve the battery's health state.

Evaluation Methods

Capacity Testing Method: By fully charging and discharging the battery and measuring the actual amount of electricity it releases, comparing it with the battery's initial capacity, and calculating the capacity retention rate, the health state of the battery can be assessed. This method is quite direct but takes a long time and may cause some wear to the battery.

Internal Resistance Measurement Method: The internal resistance of a battery increases with aging. By measuring the battery's AC or DC internal resistance, its health status can be indirectly reflected. Generally, an increase in internal resistance means that the electrode materials inside the battery have aged and the electrolyte has dried out, which may lead to a decline in battery performance. The internal resistance measurement method has the advantages of being fast and non-destructive but requires professional measuring equipment.

Electrochemical Impedance Spectroscopy (EIS) Method: This is a measurement method based on the electrochemical characteristics of the battery. By applying small-amplitude AC signals of different frequencies to the battery and measuring its impedance response, the chemical reaction processes and electrode material states inside the battery can be analyzed. The EIS method can provide a wealth of battery information, but the measurement and analysis process is more complex and usually requires professional instruments and technicians.

Importance

Ensuring Normal Operation of Equipment: In various electronic devices, electric vehicles, and other applications, understanding the health state of the battery can help users keep track of the battery's performance changes in a timely manner, prepare for maintenance or battery replacement in advance, and avoid sudden equipment shutdowns or inability to use due to battery failure, ensuring the reliability and stability of the equipment.

Optimizing Battery Usage Strategies: Based on the battery's health state, charge/discharge strategies can be reasonably adjusted. For example, deep charge/discharge cycles can be avoided when the battery's health condition is poor, or the charging current can be appropriately reduced to slow down the battery's aging rate and extend its lifespan.

Supporting Battery Recycling and Cascaded Use: For retired batteries, accurately assessing their health state helps determine whether they can still be used in a cascaded manner, such as in energy storage systems where battery performance requirements are relatively lower. It also provides reference for battery recycling companies to develop reasonable recycling and treatment plans based on the battery's health condition, improving resource recycling and utilization rates.

The health state of a battery (SOH), as a core indicator for measuring battery performance and lifespan, maps out the "health trajectory" of a battery in complex usage environments. A deep understanding and precise control of SOH will inject continuous momentum into the innovation of battery technology, the vigorous development of the new energy industry, and even the construction of an entire green future, illuminating the path ahead.
